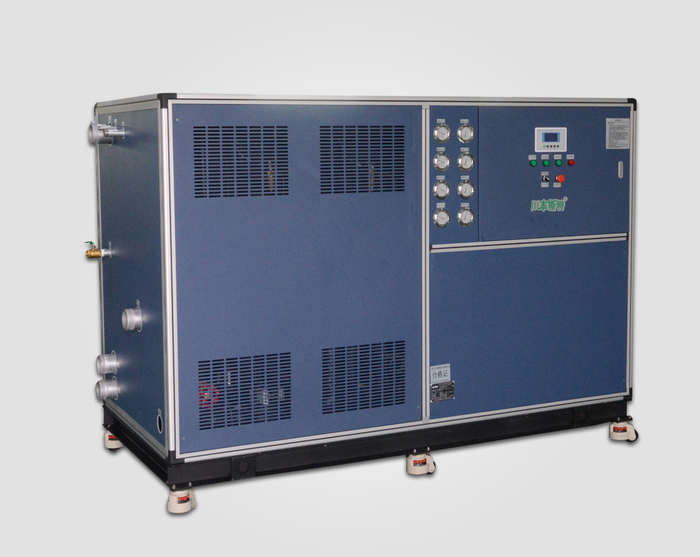

Box-type water-cooled chiller

Product Description
Basic Parameters
Use Site
Download


Chuanbensite brand box-type water-cooled chiller is widely used in constant temperature cooling in industrial production of chemical, electronics, plastic, battery, food, medicine, printing, machining and other industries. Increase the output of your products and escort your production equipment.


First, the characteristics of the unit:

1. Housing: High-strength steel plate is sprayed with plastic, and the most advanced patented technology is used for high-precision processing to ensure that it will not rust in acid and alkali gas.

2. Compressor: It adopts international famous brand Japanese Panasonic and American Copeland compressors, with large cooling capacity and quiet operation.

3. Condenser: The shell-and-tube condenser is made of aluminum brass, which enhances the anti-corrosion performance, good heat dissipation effect, easy to clean and maintain, and easy to install.

4. Evaporator: adopts 304 stainless steel water tank coil design, and can continuously supply frozen water, reduce the absorption of environmental heat, improve refrigeration energy efficiency, and be more hygienic.

5. Water pump: The standard equipments are all stainless steel pumps from Nanfang and Lingxiao, with two-stage motors, high efficiency, low power consumption, high pressure, low noise, low temperature rise, and easy maintenance.

6. Waterway: All places in contact with water are made of 304 stainless steel.

7, refrigerant throttling valve: Danfoss and Emerson expansion valves are used in all series.

8, Taiwan famous brand Bangpu microcomputer control, built-in comprehensive intelligent monitoring and protection, including motor temperature control, phase sequence monitoring, manual reset lock, oil temperature monitoring, accurate temperature control within ± 1 degree temperature difference. Special models can reach plus or minus 0.1 degrees.

9. All electrical appliances adopt the French Schneider or LG brand, which is efficient, environmentally friendly, safe, long life and not easy to age. Integrated protection and processing functions such as water cutoff, low temperature, low pressure, antifreeze, phase loss, reverse phase, delayed start, overload, motor overheating, oil pressure difference, etc.

10. The refrigerant standard adopts stable and high-strength R22, and the environmentally friendly refrigerants R407C, R410A, R134A, R404A, etc. are also available.



Selection basic parameter table


Model / parameter

Cooling capacity

Compressor input power

KW

Chilled water flow

m3/h

Reference dimensions

L×W×H(mm)

KW

Kcal/hr

CBE-9WLC

9.3

7998

2.2

1.8

900×560×860

CBE-12WLC

12.4

10664

3

2.4

900×560×860

CBE-16WLC

15.5

13330

3.75

3

900×560×860

CBE-19WLC

18.6

15996

4

3.6

900×560×860

CBE-25WLC

24.8

21328

6

4.8

1220×700×1195

CBE-31WLC

31

26660

7.5

6

1220×700×1195

CBE-37WLC

37.2

31992

9

7.2

1220×700×1195

CBE-47WLC

46.5

39990

11

9

1400×750×1395

CBE-62WLC

62

53320

15

12

1500×800×1420

CBE-78WLC

77.5

66650

18

15

1650×900×1550

CBE-93WLC

93

79980

22.5

18

1830×950×1620

CBE-112WLC

111.6

95976

27

21

1900×950×1620

CBE-124WLC

124

106640

30

24

2100×1000×1620

CBE-140WLC

139.5

119970

33

27

2200×1100×1715

CBE-155WLC

155

133300

36

30

2300×1100×1715

CBE-186WLC

186

159960

45

36

2400×1150×1715



Remarks:

1. The cooling capacity is based on the inlet and outlet water temperature of 12 ° C / 7 ° C, the condensate water temperature of 40 ° C, and the fouling factor of 0.088m2.

2. Specifications and dimensions are subject to change due to product improvement without notice.

3. For more detailed parameters, please download or request by yourself (Tel: 0755-89643086)
